KONE KM3689159 Electromagnetic Brake | GF2 100 A55/115 24VDC

Product Overview

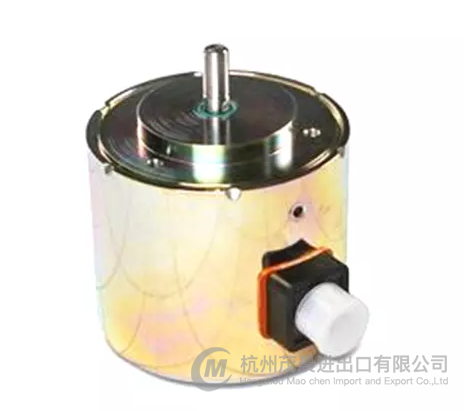

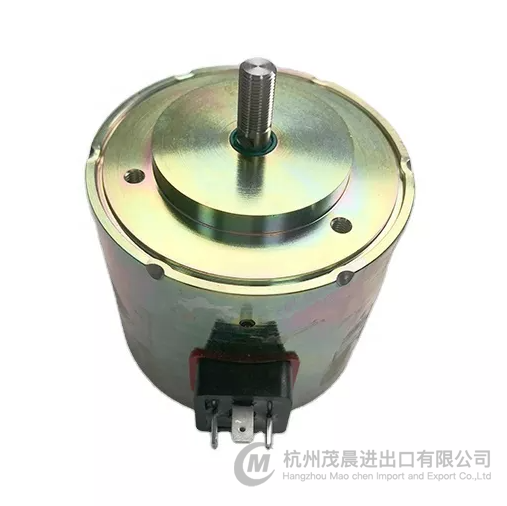

KONE KM3689159 Electromagnetic Brake is a professional replacement brake component designed for compatible KONE escalator systems.

The product is identified by KONE OEM Part No. KM3689159 and MFG Code GF2 100 A55/115. It is manufactured by Magnetbau Schramme GmbH & Co. KG and specified at 24VDC, 58W, 100% ED, with a 3.5mm brake clearance.

This electromagnetic brake is suitable for professional KONE escalator maintenance, brake replacement, repair, refurbishment and modernization projects.

Product Specifications

Key Features

1. KONE OEM Replacement Brake

KM3689159 is supplied as a replacement electromagnetic brake for compatible KONE escalator applications.

The OEM part number and MFG code provide important references for accurate product identification and replacement matching.

2. Magnetbau Schramme Manufacturing

The brake is manufactured by:

Magnetbau Schramme GmbH & Co. KG

MFG Code: GF2 100 A55/115

This provides a clear manufacturer and specification reference for professional escalator service companies and spare parts distributors.

3. 24VDC / 58W Specification

The product is specified as:

• Voltage: 24VDC

• Power: 58W

• Duty: 100% ED

• Clearance: 3.5mm

The electrical and mechanical specifications should be checked against the original brake before installation.

4. Multiple Related Specifications

Depending on the escalator configuration, related GF2 specifications may include:

• GF2 100 A55/115

• GF2 100 A55/114

• GF2 100 A55/125

• GF2 100 A55/117

Please confirm the original part number and brake specification before selecting an alternative configuration.

Application

The KONE KM3689159 electromagnetic brake is suitable for compatible escalators installed in:

• Shopping Malls

• Airports

• Railway Stations

• Metro Stations

• Hotels

• Office Buildings

• Hospitals

• Supermarkets

• Commercial Complexes

• Public Transportation Facilities

It is suitable for professional:

Escalator Brake Replacement | Routine Maintenance | Preventive Maintenance | Repair | Refurbishment | Modernization

Product Advantages

✓ KONE OEM Part No. KM3689159
✓ MFG Code GF2 100 A55/115
✓ 24VDC / 58W specification
✓ 100% ED duty rating
✓ 3.5mm brake clearance
✓ Manufactured by Magnetbau Schramme GmbH & Co. KG
✓ Related GF2 specifications available
✓ Suitable for KONE escalator maintenance
✓ Suitable for brake replacement and repair
✓ 1-year warranty
✓ Online technical support
✓ Professional export packaging

Compatibility Verification

Electromagnetic brake specifications can vary between different escalator models and configurations. Before ordering, please provide:

1. KONE escalator model

2. Original OEM part number

3. Original MFG code

4. Brake voltage

5. Power rating

6. Brake clearance

7. Product nameplate

8. Photos of the original brake

Our technical team can assist with part number verification and replacement matching.

For the best result, we recommend matching the OEM number + MFG code + electrical specifications + mechanical dimensions rather than relying on appearance alone.

Escalator Maintenance & Modernization

KM3689159 can be supplied for various escalator service requirements, including:

• Aging brake replacement

• Electromagnetic brake replacement

• Preventive maintenance

• Emergency repair

• Escalator refurbishment

• Escalator modernization

• Spare parts inventory

• Long-term maintenance programs

For large-scale projects, multiple escalator spare parts can be supplied together to simplify procurement and international shipment.

Related KONE Escalator Spare Parts

We also supply a wide range of KONE escalator components, including:

• Electromagnetic Brakes

• Escalator Brake Coils

• Drive Motors

• Drive Chains

• Step Chains

• Step Rollers

• Handrail Drive Wheels

• Handrail Rollers

• Newel Chains

• Reversing Chains

• Comb Plates

• Guide Rails

• Demarcation Strips

• Escalator Safety Components

Packaging & International Delivery

Packaging: Export Packing Plywood Case

Transportation: Ocean / Land / Air / DHL / FedEx / UPS / TNT / SF Express / EMS

Payment: T/T

Incoterms: CFR / CIF / EXW

Selling Unit: Piece / Pieces

HS Code: 8431310090

The product can be packed in an export plywood case to provide additional protection during international transportation.
