FTMS160/6 Escalator Drive Motor | 5.5kW 7.5kW 11kW 15kW IP55

Product Overview

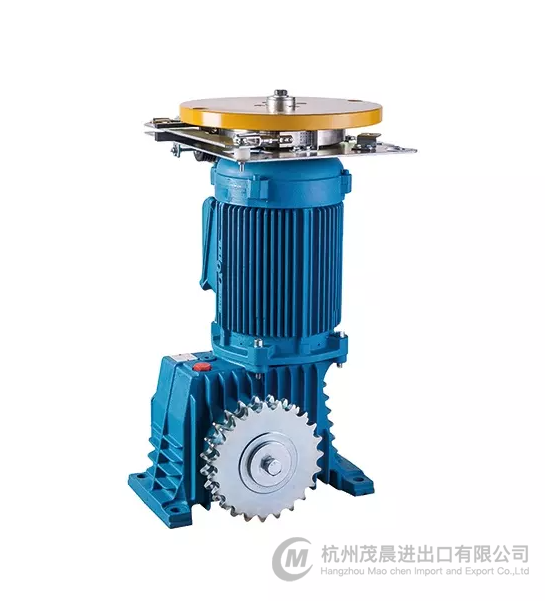

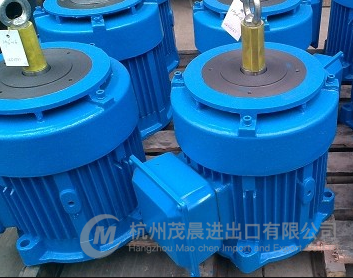

FTMS160/6 Series Escalator Drive Motor is designed for escalator driving systems and is available in 5.5kW, 7.5kW, 11kW and 15kW power configurations.

The motor series is suitable for compatible escalator drive machines, including applications requiring replacement of Schindler escalator drive motors. The available models feature 380V, 50Hz, 6-pole design and 960 r/min rated speed, with IP55 protection for improved resistance to dust and moisture.

The FTMS160/6 series provides a practical replacement solution for escalator maintenance, drive motor replacement, refurbishment and modernization projects.

Product Specifications

Motor Model Options

FTMS160/6-08 — 5.5kW

Power: 5.5kW
Voltage: 380V
Frequency: 50Hz
Current: 14A
Speed: 960 r/min
Efficiency: 86.0%
Power Factor: 0.69
Protection: IP55
Weight: Approx. 120kg

FTMS160/6-13 — 7.5kW

Power: 7.5kW
Voltage: 380V
Frequency: 50Hz
Current: 19A
Speed: 960 r/min
Efficiency: 87.2%
Power Factor: 0.71
Protection: IP55
Weight: Approx. 130kg

FTMS160/6-15 — 11kW

Power: 11kW
Voltage: 380V
Frequency: 50Hz
Current: 26A
Speed: 960 r/min
Efficiency: 88.7%
Power Factor: 0.73
Protection: IP55
Weight: Approx. 145kg

FTMS160/6-16 — 15kW

Power: 15kW
Voltage: 380V
Frequency: 50Hz
Current: 34A
Speed: 960 r/min
Efficiency: 89.7%
Power Factor: 0.76
Protection: IP55
Weight: Approx. 155kg

Key Features

1. Multiple Power Options

The FTMS160/6 series is available in four common power ratings:

• 5.5kW — FTMS160/6-08

• 7.5kW — FTMS160/6-13

• 11kW — FTMS160/6-15

• 15kW — FTMS160/6-16

This allows customers to select the appropriate motor according to the original escalator drive system.

2. IP55 Protection

The FTMS160/6 series uses an IP55 protection rating, providing improved protection against dust ingress and water jets compared with lower-protection motor configurations.

This makes the motor suitable for demanding escalator machine-room and equipment environments.

3. 6-Pole / 960 r/min Design

The motors are designed with a 6-pole configuration and a rated speed of approximately 960 r/min at 50Hz, suitable for compatible escalator driving systems.

4. Replacement for Existing Escalator Motors

The FTMS160/6 series can be evaluated as a replacement for certain existing escalator drive motors, including:

KFT 160M-VF6 C
ID: 147543
Original protection: IP21
SWISS MADE

For replacement projects, motor dimensions, shaft configuration, mounting, electrical parameters and drive-machine compatibility should be verified before installation.

Schindler Escalator Drive Motor Replacement

The FTMS160/6 series can be supplied for compatible Schindler escalator drive systems and related replacement projects.

For example:

Original Motor: KFT 160M-VF6 C
ID: 147543
Original Protection: IP21
Replacement Option: FTMS160/6-15 — 11kW IP55

The replacement should be confirmed by technical specifications and physical dimensions rather than motor power alone.

Motor Performance Parameters

Performance data should be checked against the motor nameplate and technical documentation before final selection.

Application

FTMS160/6 escalator drive motors are suitable for compatible escalators installed in:

• Shopping Malls

• Airports

• Metro Stations

• Railway Stations

• Hotels

• Office Buildings

• Supermarkets

• Commercial Complexes

• Public Transportation Facilities

• Other High-Traffic Public Buildings

Suitable applications include:

Escalator Drive Motor Replacement | Escalator Maintenance | Escalator Repair | Refurbishment | Modernization

Product Advantages

✓ Escalator-specific drive motor solution
✓ 5.5kW / 7.5kW / 11kW / 15kW options
✓ 380V / 50Hz
✓ 6-pole motor design
✓ 960 r/min rated speed
✓ IP55 protection
✓ Suitable for compatible Sch escalator applications
✓ Suitable for motor replacement projects
✓ Suitable for escalator modernization
✓ Multiple power configurations
✓ Export packaging available
✓ International transportation available

Motor Replacement Verification

For an accurate replacement recommendation, please provide:

1. Original motor model

2. Original motor nameplate

3. Escalator brand and model

4. Rated power

5. Voltage

6. Frequency

7. Rated speed

8. Mounting dimensions

9. Shaft dimensions

10. Motor photos

11. Drive machine information

12. Original part number or identification code

Our technical team can assist with motor specification comparison and replacement evaluation.

Packaging & Delivery

Packaging: Export Packing

Transportation: Ocean / Land / Air / Courier Service

Payment: T/T

Incoterms: FOB / CFR / CIF / FCA / CPT

Selling Unit: Piece / Pieces

HS Code: 8431310090

For heavy motors, export plywood cases or customized reinforced packaging can be arranged according to transportation requirements.

Related Escalator Drive System Parts

We can also supply components for complete escalator drive system maintenance, including:

• Escalator Drive Motors

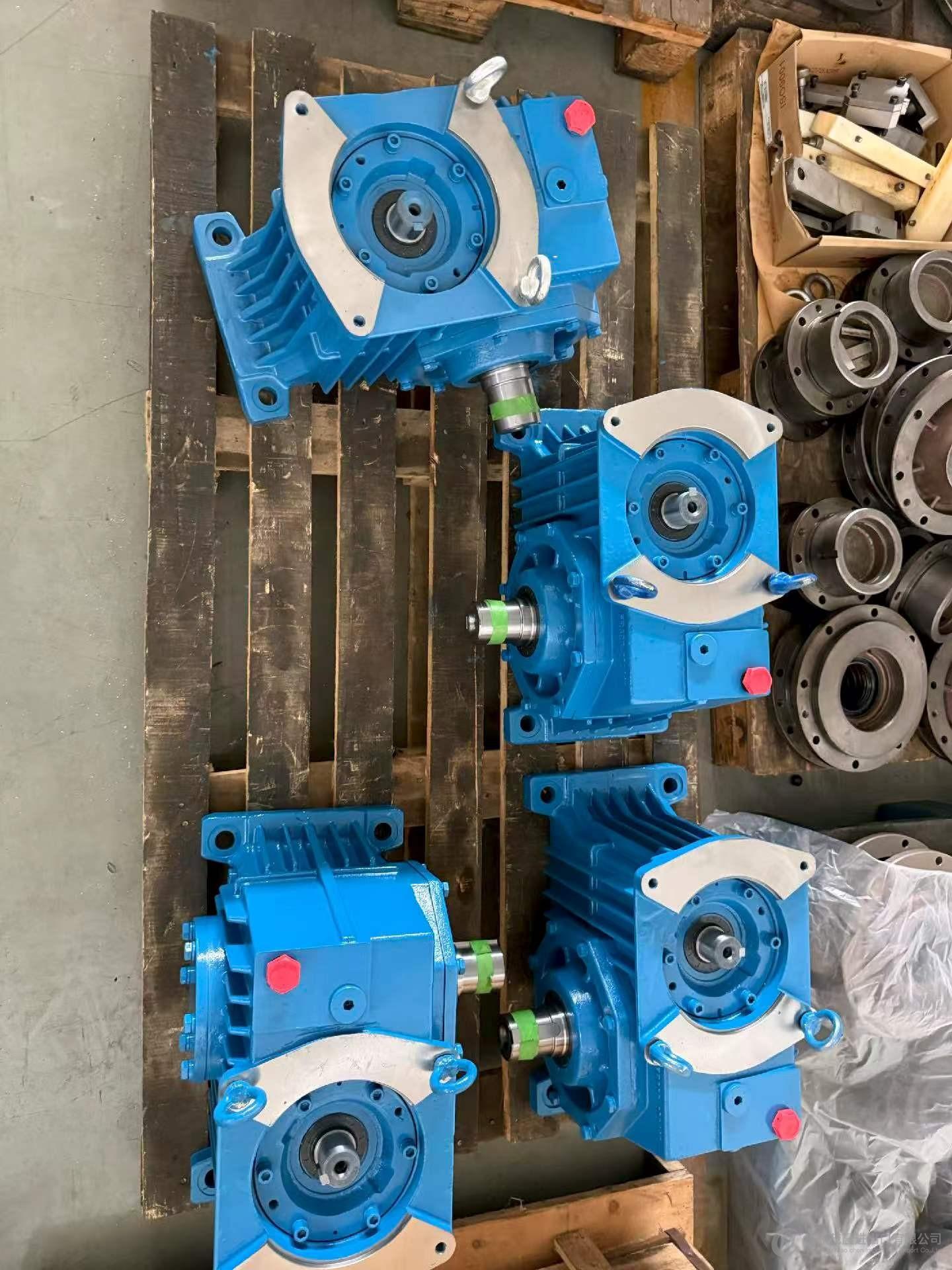

• Gearboxes / Reducers

• Drive Sprockets

• Drive Chains

• Brake Assemblies

• Electromagnetic Brakes

• Step Chains

• Step Rollers

• Handrail Drive Components

• Control Components

• Safety Components

This makes it possible to support complete escalator drive system replacement and modernization projects.
