50644845 / 50644844 Schindler 9500 Moving Walk Comb Plate – Aluminum 22 Teeth

Product Overview

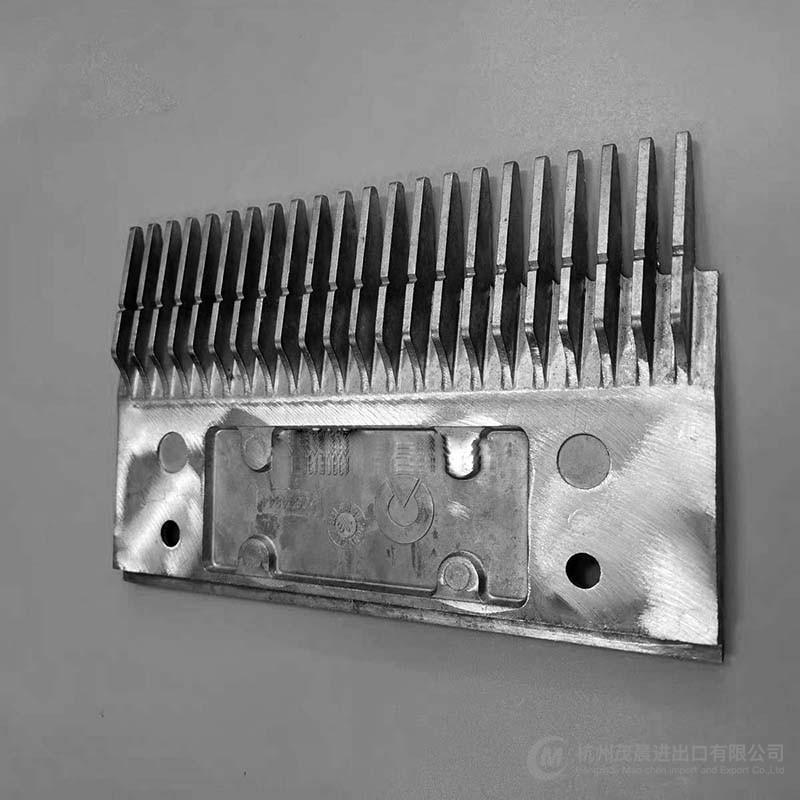

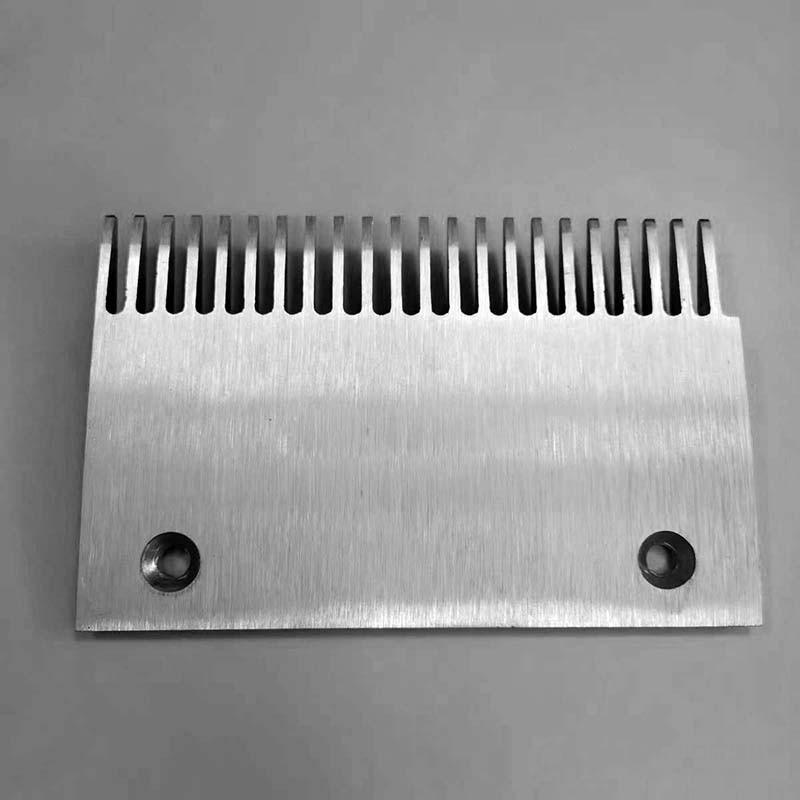

The 50644845 / 50644844 Comb Plate is an aluminum replacement component for compatible Schindler 9500 moving walk systems. Both part numbers are identified as 9500 moving-walk comb plates, with different left/right configurations.

The comb plate is installed at the landing area of the moving walk and provides the transition between the moving pallets and the stationary landing section.

Product Specifications

Model Details

50644845

• Size: 199.4 × 128 mm

• 22 Teeth

• Aluminum

• Right Side

• Tooth Pitch: 9.068 mm

• Hole Spacing: 145 mm

50644844

• Size: 205.4 × 128 mm

• 22 Teeth

• Aluminum

• Left Side

• Tooth Pitch: 9.068 mm

• Hole Spacing: 145 mm

Key Features

1. Designed for Schindler 9500 Moving Walk

The 50644844 and 50644845 part numbers are specifically listed for 9500 moving walk applications, making them useful references when replacing the original comb plate.

2. Aluminum Construction

The aluminum construction provides a durable and dimensionally stable solution for moving-walk landing applications.

3. 22-Tooth Design

Both versions use a 22-tooth configuration with 9.068 mm tooth pitch, suitable for the corresponding 9500 moving-walk pallet configuration.

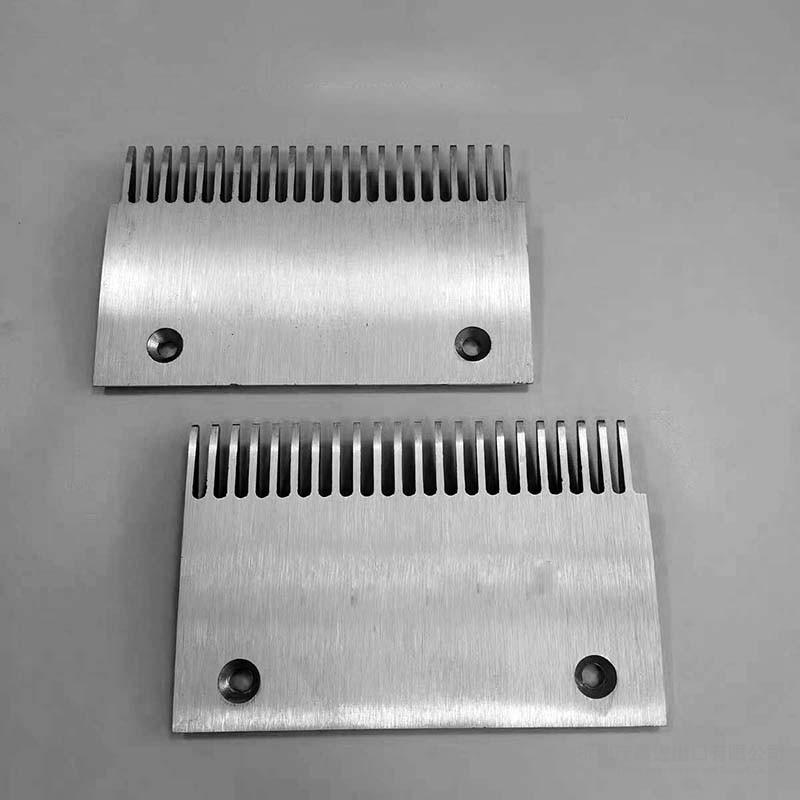

4. Left & Right Versions Available

The two part numbers correspond to different installation configurations:

• 50644845 – Right

• 50644844 – Left

Correct left/right identification is important before ordering.

Application

Suitable for compatible:

• Schindler 9500 Moving Walk

• Travelator Systems

• Moving Walk Landing Assemblies

• Comb Plate Assemblies

• Moving Walk Maintenance

• Moving Walk Repair

• Equipment Modernization

• Spare Parts Replacement

Technical Information

Product: Moving Walk Comb Plate

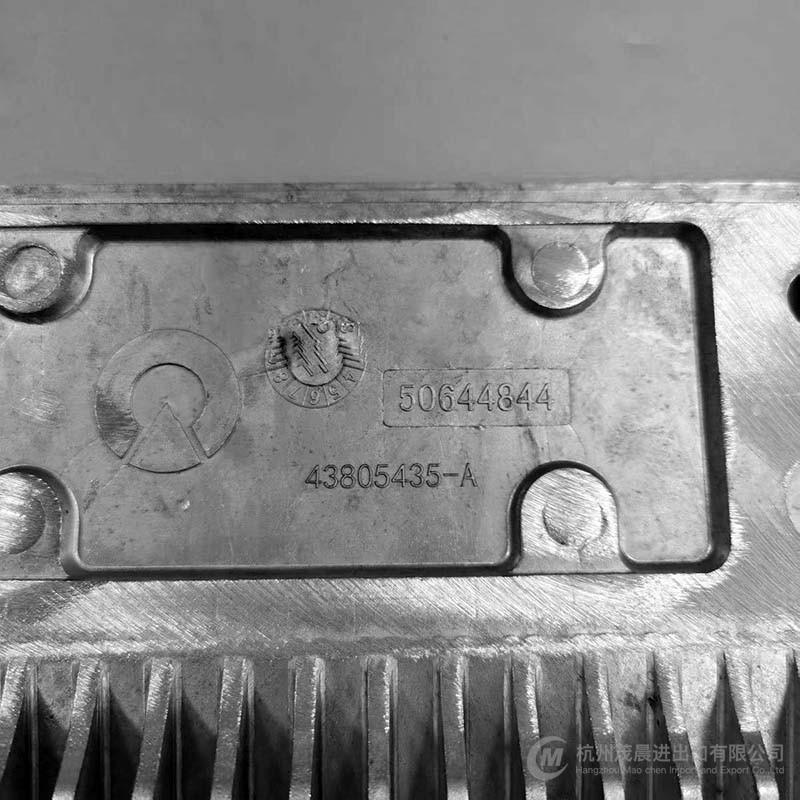

OEM: 50644844 / 50644845
Series: Schindler 9500
Material: Aluminum
Teeth: 22T
Tooth Pitch: 9.068 mm
Hole Spacing: 145 mm

50644844: 205.4 × 128 mm, Left
50644845: 199.4 × 128 mm, Right

Important: Although the two models belong to the same 9500 series, their dimensions and left/right configurations are different. Please confirm the original part number, dimensions and installation position before ordering.

Replacement Applications

✓ Schindler 9500 Moving Walk Comb Plate Replacement
✓ Moving Walk Preventive Maintenance
✓ Moving Walk Repair
✓ Travelator Spare Parts
✓ Moving Walk Modernization
✓ Comb Plate Replacement
✓ Escalator & Moving Walk Spare Parts Supply

Ordering Information

For accurate matching, please provide:

1. Original Part Number

2. Moving Walk Model

3. Left / Right Position

4. Comb Plate Dimensions

5. Number of Teeth

6. Tooth Pitch

7. Hole Spacing

8. Original Product Photos

9. Required Quantity

We can assist with part-number verification, dimensional matching and replacement-part identification.

Packaging & Delivery

Packaging

• Export Carton

• Wooden Case

• Customized Export Packaging

Transportation

• Ocean Freight

• Air Freight

• Courier

• Land Transportation

Payment: T/T
Warranty: 12 Months
