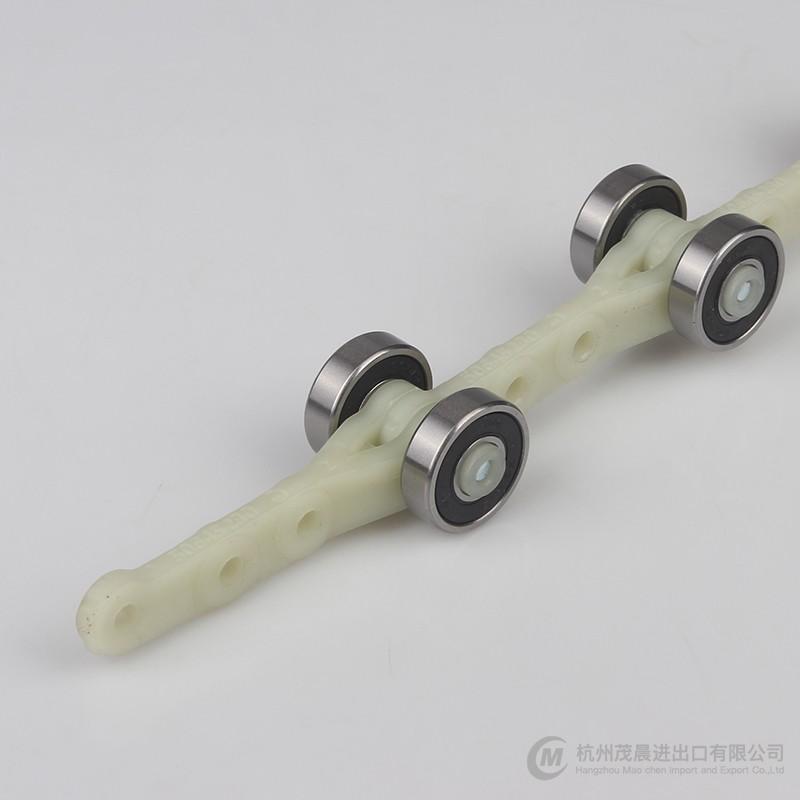

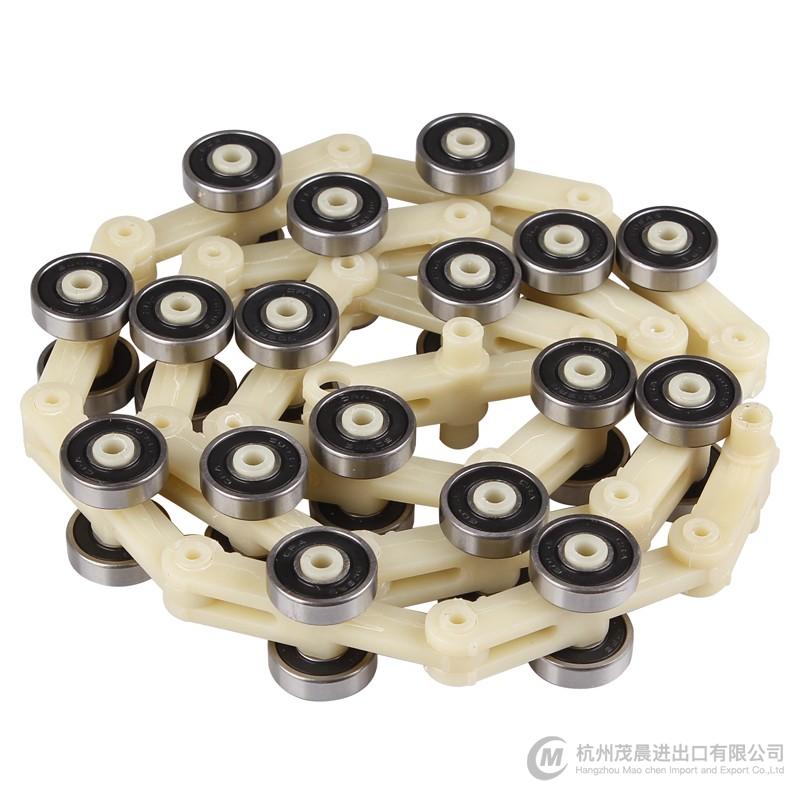

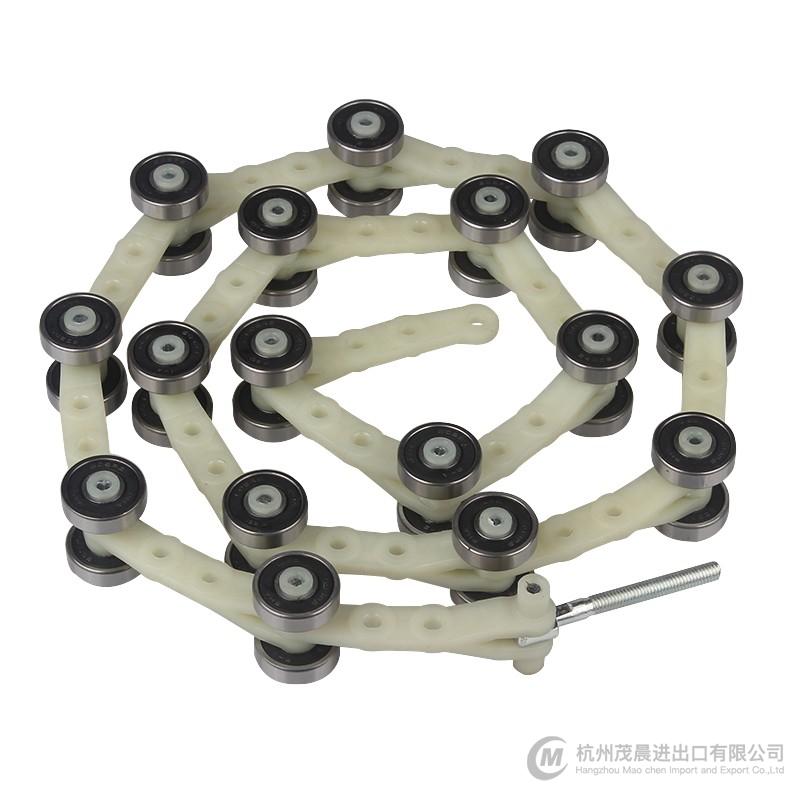

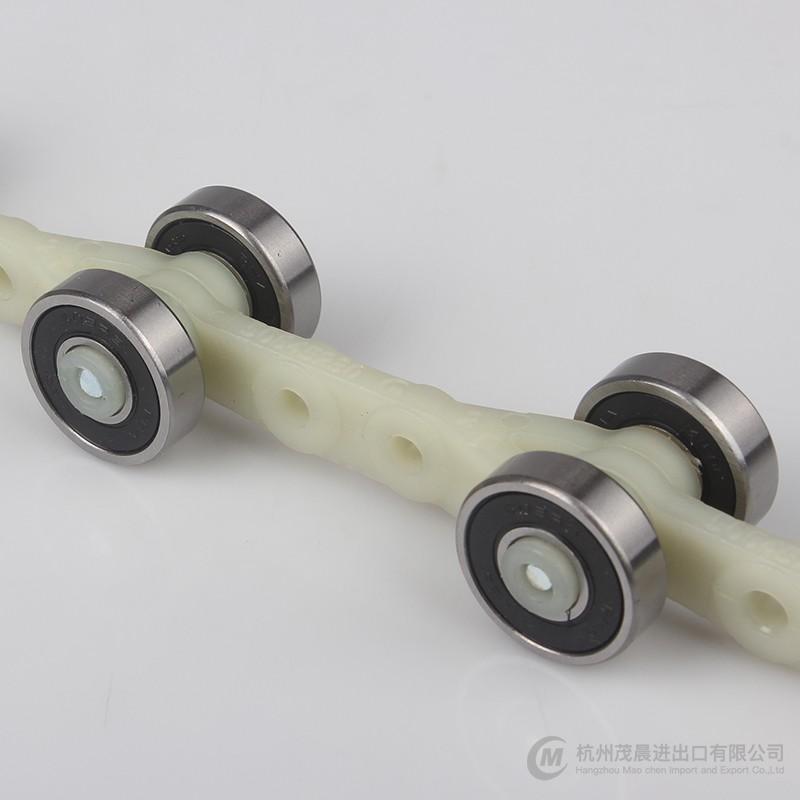

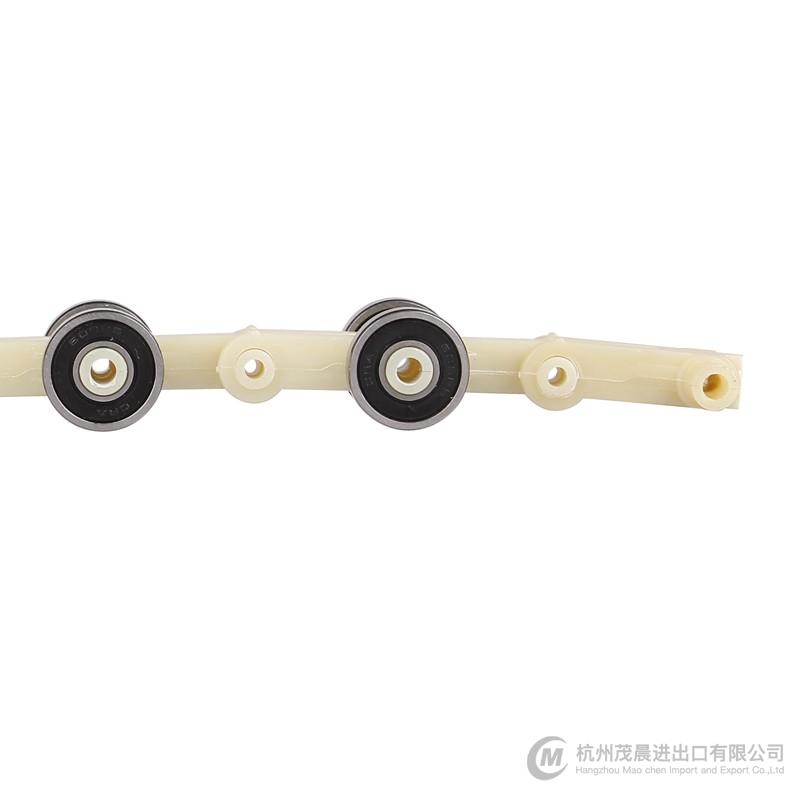

609RS Schindler Escalator Newel Reversing Chain Double Fork 17 Links

Product Overview

The 609RS Escalator Newel Reversing Chain is a replacement component designed for compatible escalator handrail reversing and newel systems.

This version features a double/two-fork configuration with 17 links, providing flexibility through the curved handrail reversing section. The 609RS bearing configuration is commonly used in escalator newel/reversing chains, and industry listings also identify 609RS as a bearing specification for these assemblies.

It is suitable for Schindler-compatible escalator maintenance, repair, spare-parts replacement and modernization projects.

Product Specifications

Key Features

1. 609RS Bearing Configuration

The 609RS specification is widely associated with escalator newel/reversing chain assemblies. Similar market references describe 609RS newel chains with multiple link/roller configurations.

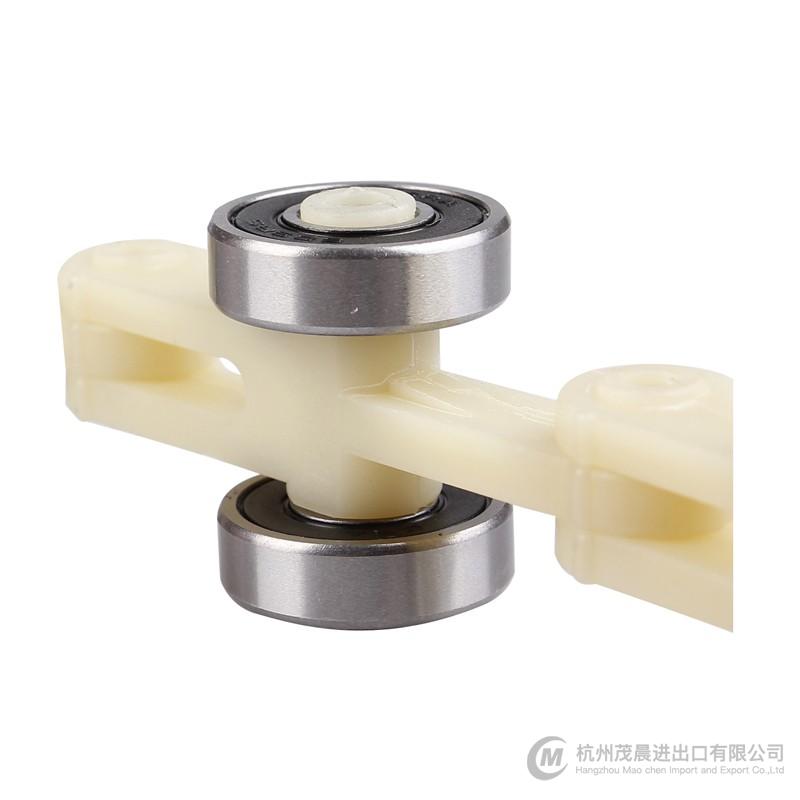

2. Double / Two-Fork Design

The double-fork configuration provides the articulation required for the chain to follow the curved reversing path of the escalator handrail system.

3. 17-Link Configuration

The chain is supplied in a 17-link configuration, making it suitable for compatible escalator handrail newel assemblies requiring this configuration.

4. Smooth Handrail Reversing

Newel/reversing chains operate within the curved handrail guide section and help reduce friction while guiding the handrail through its return path.

Application

Suitable for compatible:

• Schindler Escalators

• Escalator Handrail Systems

• Newel Assemblies

• Handrail Reversing Systems

• Escalator Rotary Systems

• Escalator Maintenance Projects

• Escalator Repair Projects

• Escalator Modernization Projects

Product Terminology

Customers may search for this component using different names:

• Escalator Newel Chain

• Escalator Reversing Chain

• Escalator Reverse Chain

• Escalator Rotary Chain

• Handrail Newel Chain

• Handrail Reversing Chain

• Newel Roller Chain

• 609RS Newel Chain

• 609RS Reversing Chain

• Double Fork Newel Chain

• Two Fork Newel Chain

Technical Information

Product: Escalator Newel Reversing Chain
Bearing: 609RS
Configuration: Double Fork / Two Fork
Links: 17
Type: Newel / Reversing / Rotary Chain
Application: Escalator Handrail System
Installation: Newel / Reversing Section

Important: Newel chain dimensions, pitch, roller diameter, bearing arrangement and total length can vary between escalator models. Please confirm the original chain, dimensions and bearing configuration before ordering.

Replacement & Maintenance Applications

✓ Escalator Newel Chain Replacement
✓ 609RS Reversing Chain Replacement
✓ Handrail Rotary Chain Replacement
✓ Handrail Newel Chain Replacement
✓ Escalator Preventive Maintenance
✓ Escalator Repair
✓ Escalator Modernization
✓ Spare Parts Distribution

Ordering Information

For accurate matching, please provide:

1. Escalator Brand

2. Escalator Model

3. Original Part Number, if available

4. Number of Links

5. Bearing Model

6. Chain Pitch

7. Roller Diameter

8. Original Product Photos

9. Required Quantity

We can assist with sample matching, technical specification verification and replacement-part identification.

Packaging & Delivery

Packaging:

• Export Carton

• Wooden Case

• Customized Packaging

Delivery: Air / Sea / Courier / Land Transportation
Payment: T/T
Warranty: 12 Months
